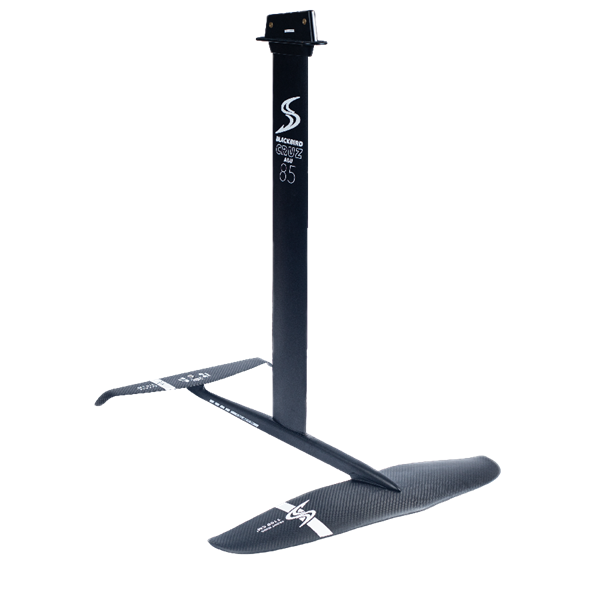

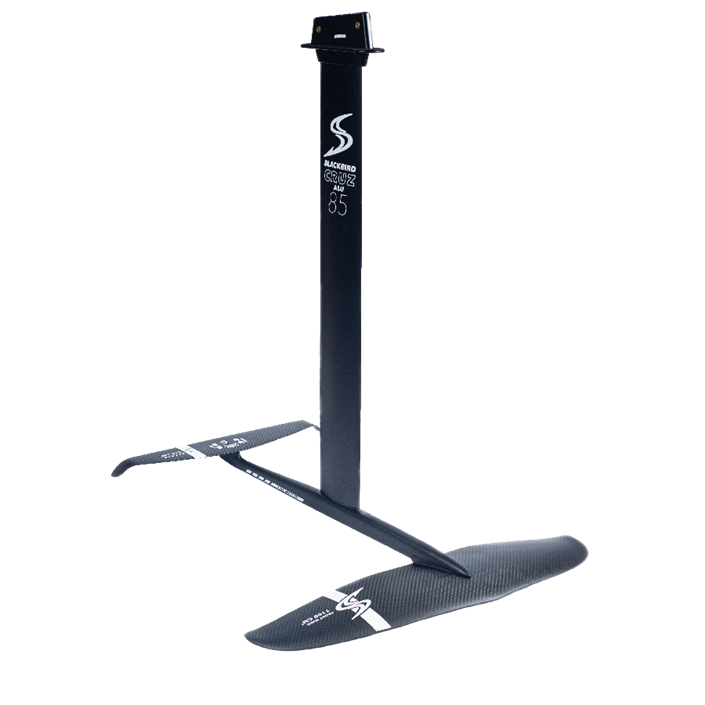

Blackbird Cruz Alu 85

INTRODUCTION

The Blackbird Cruz is an allround performer that brings joy in every discipline, this is the go-to-foil for maneuverable, smooth and super fun riding. A medium surface area of the carbon front wing provides a low drag for high top-end speeds whilst still generating superb lift.

The generous surface area of the carbon front wing creates superb lift into to flight mode, even in lower speeds. The 85 cm fuselage length provides additional stability and extra power. The ideal foil to cover your windsurf foiling experience all the way from beginner to performance level.
Available with a Alu or Carbon mast.

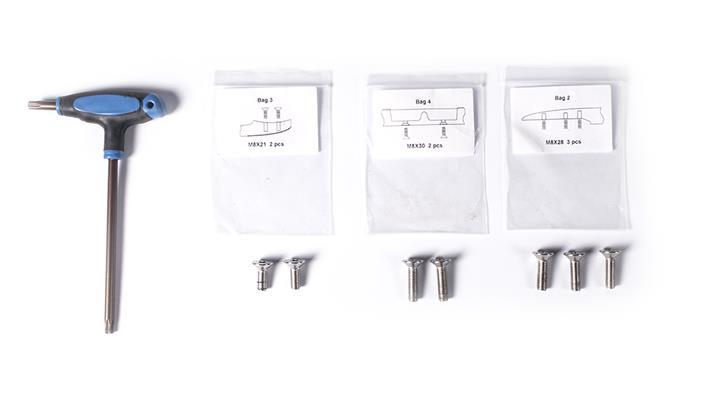

Delivered with: Transport bag, fittings and Torx tool.

SPECIFICATONS

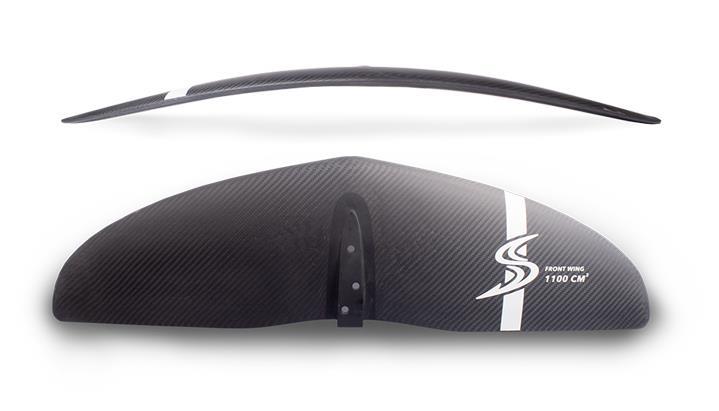

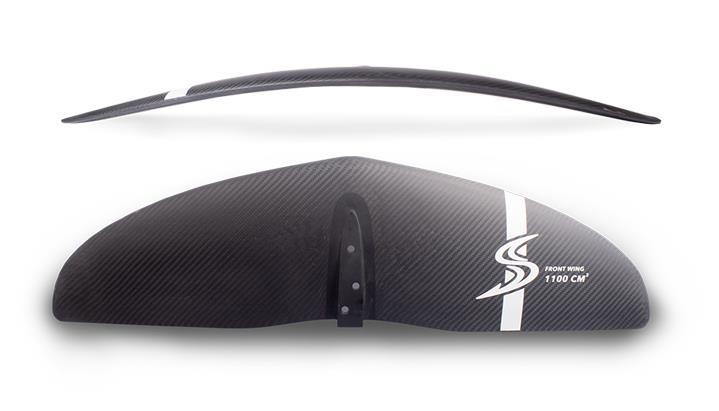

Blackbird Front Wing 1100 cm2

The 1100 cm2 Carbon front wing is designed for freeride, whether in Wind foil or Wing foil. This front wing gets you going early and provides you with a stable flight. It also has the ability to reach high top-end speeds.

Material // Carbon

Wingspan //  715 mm

Chord Width // 188 mm

Chord Thickness // 22 mm

Area // 1100 cm2

Aspect Ratio // 3:8

Screws // 3 x M8 28 mm

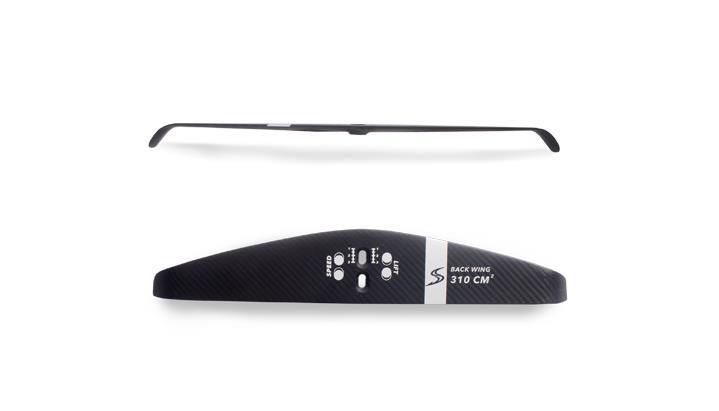

Blackbird Rear Wing 310 cm2

Engineered with a flat profile combined with an 85 mm chord, the 310 cm2 Carbon Rear Wing gives ideal performance in the waves and on the flat. The adjustable fin slots allow you to tune the back stabilizer for either more lift or higher speed.

Material // Carbon

Wingspan //  480 mm

Chord Width // 85 mm

Chord Thickness // 8 mm

Area // 310 cm2

Aspect Ratio // 5:6

Screws // 2 x M8 21 mm

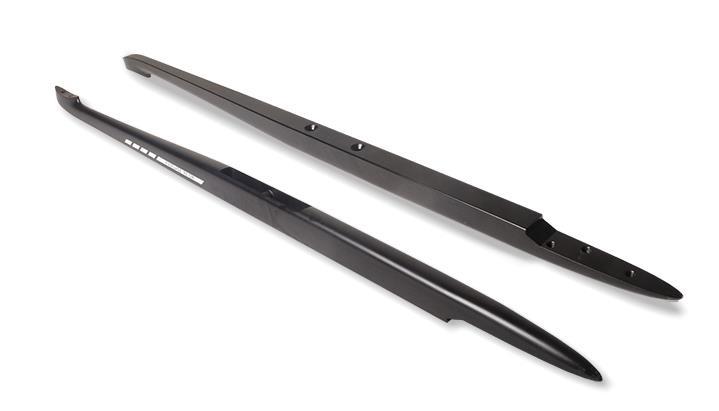

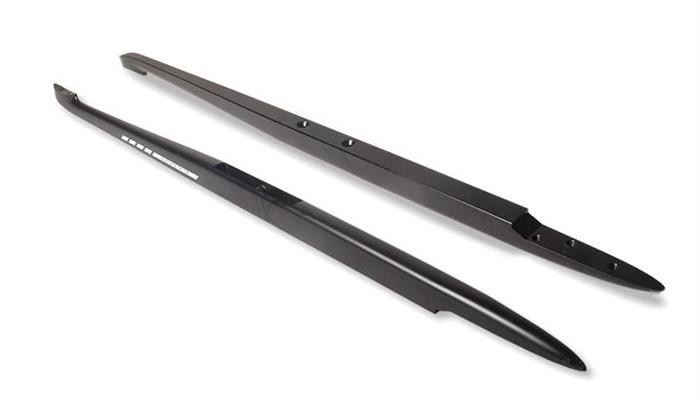

Fuselage 85 cm

The Blackbird Alu Fuselage seamlessly connects to any size wings in the Simmer Style range. The fuselage is manufactured from lightweight and extremely strong CNC machined high-grade aluminum, which is anodized for maximum longevity. The length creates great stability combined with fingertip maneuverability when needed.

Fittings to the mast // 2 x M8 30 mm

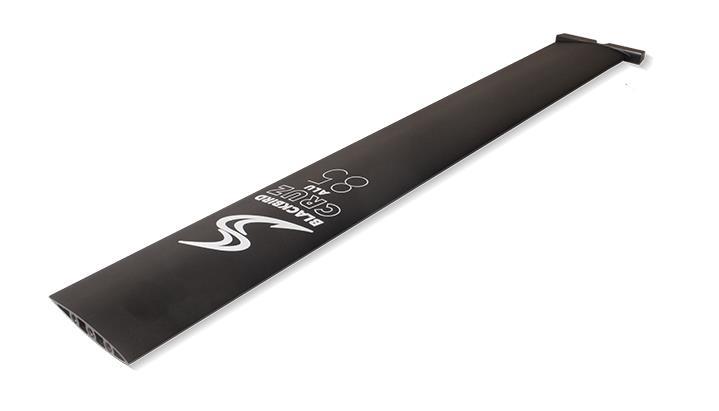

Aluminum Mast 85 cm

The Blackbird Aluminium mast provides an extremely strong connection between your board and your wings. The mast is manufactured from light-weight and extremely strong CNC machined high-grade aluminum, which is anodized for maximum longevity. The mast is compatible with both the Double Rail Plate and the Deep Tuttle connection.
The Cruz foil comes standard with a Deep Tuttle adaptor.

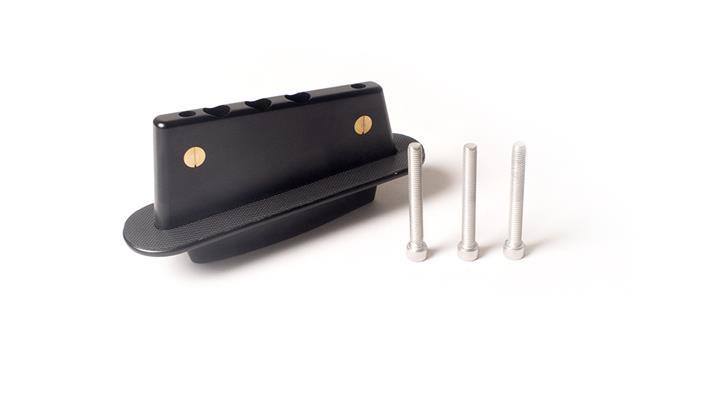

Deep Tuttle Box Connector

The Blackbird Cruz Foil comes standard with a Deep Tuttle box connector. But the mast can be fitted with several options to connect with the board including Double Rail Plate, Tuttle and Deep Tuttle. All versions are securely fastened to the mast using three M8 65 mm flathead screws. The connector is machined out of solid blocks of high-quality aluminum using CNC techniques to ensure that the geometry of the connection is perfect. The surface between the board and the board is protected by a soft extured rubber surface.
